Description

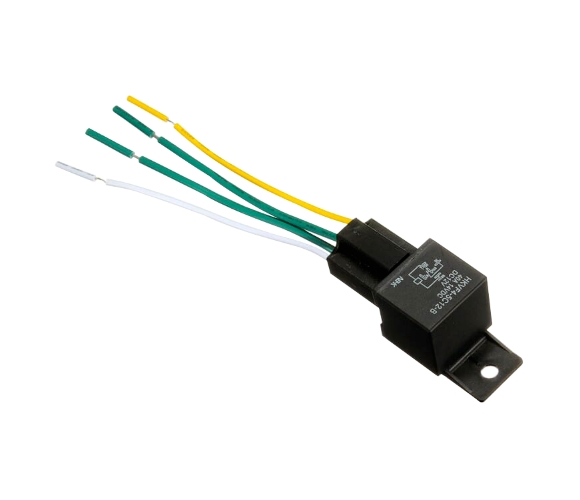

12v 40a DC 4pin Relay & Base

For use with GPS tracking devices with fuel cut off using 24v power systems

  • Contact resistance    <50mΩ
  • Operate time    10ms max.
  • Release time    10ms max.
  • Insulation resistance    100MΩ at 500Vdc
  • Mechanical life    >10 million operations
  • Electrical life    >100,000 operations at full load
  • Contact material    Silver alloy
  • Durable

Coil details:

  • Nominal    Operate    Coil
  • voltage    range(V)    resistance
  • 12Vdc    9.2-16.4    320Ω±10%
  • Size of base    26.8 x 28.6mm

Additional information

Weight100 g
Dimensions1 × 1 × 1 cm
