Description
Ready to use right out of the box

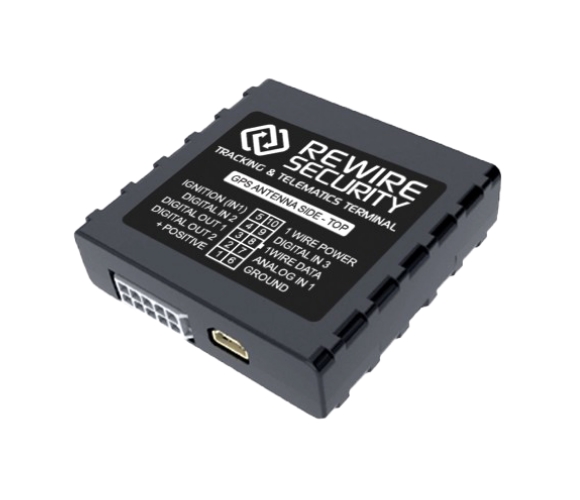

DB1 4G is an ideal GPS tracker for use in countries where the 2g network has been switched off (Australia, New Zealand, etc.). It uses the latest technology in GPS and telematics and it is a small and easy-to-fit tracker with two internal high gain GNSS and GSM antennas for improving its accuracy and coverage. The DB1 4G works on all vehicle voltage systems (+9 up to +30V) and it can be fitted in any vehicle type including trucks, vans, and busses for tracking vehicles travelling abroad. The DB1 4G features digital inputs and outputs for telematics purposes and it can be connected with different sensors via inputs for receiving diagnostics data from the vehicle. It has a state of the art motion detection feature as well as deep sleep functions for lowering its power consumption.
Pay as you go service
Pay as you go service top-up packages include coverage in more than 120 countries, unlimited GPSLive software, and GPSLive app usage. The tracker will be supplied pre-configured by our team of experts, and it will come with a multi-network SIM card pre-installed. Rewire SIM cards will pick up the best signal in 120 countries and there are no extra roaming charges or hidden fees. All you have to do is to have the tracker fitted in your car, and you will be ready to track your vehicle anytime, anywhere. We do not require you to sign any contracts you can start and stop your tracking service whenever you want to. All movements of your vehicle will be stored in our servers for 12 months.
Powerful tracking platform
GPSLive software is engineered to meet the highest demands of individual users, small to enterprise level fleets without compromising ease of use. There is no need to install any software or maps – everything is stored on our cloud platform which can be accessed from any internet enabled device. Location of your vehicles will be refreshed automatically each time the tracker sends a GPS position update. The user interface, clear structure and easy access to features make GPS Live easy to use. The DB1 4G GPS Tracker provides full control over your vehicle with it’s 2 all-purpose digital inputs, 1 dedicated ignition detection and one analogue input that can measure the voltage from the vehicle or any other power source of up to -30V – +30v.
Informative tracking
You can designate icons to vehicles and have an overview of various groups of vehicles. The location of each vehicle or asset is automatically updated on the map every few seconds. Our iOS and Android compatible APPs are included free of charge with your GPSLive subscription. You can set the reports to be created in HTML or PDF format, or even CSV format to allow the data to be imported into most other databases or software systems for fleet management purposes. GNSS stands for Global Navigation Satellite System. Unlike the first generation of trackers which can only use the GPS (USA) satellite system, GNSS enabled devices are able to access multiple systems such as GLONASS and GALILEO for accurate positioning.
Extensive reporting
Our comprehensive reporting system offers a wide choice of reports available for your use. The reporting system allows you to see what your vehicles have been used for and the total mileage associated with the chosen timeframe. Reports can be scheduled to be emailed to you automatically or can be downloaded manually, on demand. You can see information such as the location, speed, routes taken and events like speeding, ignition on/off etc., as well as other more in-depth information such as the number of satellites and altitude for each position report. Customized usage reports allow you to highlight the exact information you require whenever should you need it.
New feature: Trip Log
For businesses with a vehicle fleet, fuel bills make up a considerable share of total expenses. To lower these expenses, recording business mileage for tax reimbursements can be a hassle – especially when done on paper – but the benefits make it worthwhile. The latest feature of GPSLive tracking software – Trip Log enables business owners to identify business and private uses of fleet vehicles, allowing managers to easily distinguish mileage done by company vehicles between business and personal use for tax reimbursements. GPSLive enables companies to record all trips done by vehicles in their fleet; once the data is collected from the vehicles, the new Trip Log feature can be used for identifying the mileage and figuring out tax deductible trips.
Key Features
Optional Features
GPSLive APP
Track the whereabouts of your vehicles in real-time, anywhere in the world using your smartphone.
Shows the previous trips and routes carried out on any day, up to the previous 1 year.
Shows the list of recent events / alarms triggered with time and location of the event.
View the exact address of a vehicle or an asset by clicking on it.
“At a glance” dashboard for easy access along with live speedometer, battery, and ignition status
Set your smartphone to instantly warn you in case a pre-set event is triggered such as zone in/out and speeding alarms.
Access summary of all your GPS trackers along with diagnostics and sensor data, view, edit and track them.
Allows access to the trackers and personal settings and the option to enable push notifications.
GPSLIVE©
REAL-TIME
GPS TRACKING
PLATFORM
GPSlive Cloud Based GPS Tracking Platform- is a powerful online tool that allows real-time locating and tracking of your vehicles or assets on a Mac, PC, Tablet or a Smartphone using the mobile GPS tracking APP. Easy to use, fully-featured tracking platform with no installation required. Login anywhere in the world using an internet web browser with your cloud-based tracking account. GPSlive allows you to monitor 1000s of tracked objects in real-time and also stores detailed rolling travel history for the previous 365 days including start, stops, routes and speed. GPSLive stores full travel data of each tracker for the previous rolling 365 days. Search and replay travel data via time and date, view logged events such as movement, speeding, ignition as well as all starts, stops, and journeys. Download and export travel data in various document formats. GPSLive user manual can be found here and includes information on initial setup, setting up geofences, objects, events and much more.
Create different logins with limited permissions or access rights. Advanced features including auto account expiry, URL login and live view only. Detect and monitor different settings on trackers remotely including battery state, input/outputs, towing and much more. Track who is driving what vehicle where when and how.
Using an application programming interface (API), your development team is able to create bespoke solutions that export live data from our systems into other back-office software tools. A variety of metrics can be extracted including current live position, trip summary, speed, driver behaviour and many other data parameters.
KEY FEATURES
Live Tracking: Track the location of your tracking devices in your vehicle, people, mobile or asset in real-time on our efficient interface.
History: GPSLive stores full travel history and information data of each tracker for the previous rolling 90 days.
Reports: Customise and create over 15 different detailed travel, usage and telematics reports, and export document files.
Geofencing: This feature allows users to set up custom geographical zones and boundaries around specific areas on the map.
Routes: Create and save previously travelled routes and activate alerts for vehicles that enters or leaves selected routes.
Points Of Interest (POI): Markers can be used to log and highlight different addresses, shops or points on the tracking map.
Send Commands: Change settings and modes on supported trackers directly on-line using our integrated ‘Command Centre’.
Alerts: Create SMS, Email or Push notification alerts for important events such as speeding, SOS, ignition and more.
User Interface: Fully customisable user interface including time zone, colour schemes, sounds and icon sizes to name a few.
Features
- 4G Connectivity
- IP41 rated
- Internal High-Gain GSM antenna
- Internal High Gain GPS/GLONASS antenna
- GPS/GLONASS and I/O data acquisition
- Real-Time tracking via GPSLive
- Smart data acquisition (based on time, distance, angle, ignition and events
- Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
- A smart algorithm of GPRS connections (GPRS traffic saving)
- Operating in roaming networks (preferred GSM providers list)
- Deep Sleep mode (less power consumption)
- Motion sensor
- Small and easy to mount case
- Advanced overspeeding detection
Additional Features
- DB1 4G has an internal Flash memory (1MB)
- The memory can save 100,350 records or up to 120 days data with the standard configuration
- (min. period = 10min, min. distance = 1km and all I/O elements enabled).
- It is possible to disable Roaming and then the device will store data in its memory. Stored data
- will be sent to the server when DB1 4G will register to home operator.
- DB1 4G can be used without a GSM connection
Additional Functions
- Offline data logging – allows downloading acquired data from DB1 4G to PC via cable and later to upload it to TAVL server. This functionality helps to avoid high GPRS bills caused by expensive roaming operators and keep acquired data save until it is downloaded to PC.
- DB1 4G supports remote logs reading
- DB1 4G supports remote diagnostic logs functionality using GPRS. Possible issues resolving becomes faster. The manufacturer can read logs remotely using SMS/GPRS to diagnose the DB1 4G and timely respond to the fault.
GSM/GPRS Module | Quad band: 850/900/1800/1900 MHz GPRS Multi-Slot Class 12(up to 240 kbps) |
---|---|
GPS Module | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS Up to -165 dBm sensitivity, NMEA-183 protocol compatible. |
Accuracy | ~ 2 meters |
Installation Type | Hard Wired (With back-up battery) |
Antennas | Internal High Gain GPS/GNSS – Internal High Gain GSM/GPRS |
Battery | Yes (3.7v 170mAh Li-Po) |
Inputs & Outputs | 3 Digital Inputs (1 reserved for Ignition Status Monitoring) 1 Configurable Analog Input (10V or 30V range) or DIN4 2 Digital Open-collector Outputs (connecting external relays, LED, buzzers etc.) 1-Wire (iButton, RFID, temperature sensors) Motion sensor |
Working Voltage | 10v – 30v DC with overvoltage protection |
Operating Temperature | -25c -> +55c @ max 95% humidity (no condensation) |
Power Draw | Stationary- 2-10ma (deep sleep) Moving- 100ma |
Fuse Rating | Internal 3A |
Casing | IP41 rated |
Dimensions | 72mm x 62mm x 19mm |
Weight | 72g |
Compliance | CE, RoHS |
Origin | Lithuania (EU) |
Traveling abroad often? Then our Global M2M Sim card is a fantastic solution to avoid costly roaming charges, instead pay a fixed annual cost.
M2M data sim cards are developed for use in data only communicating situations, such as Telematics Devices and GPS tracking devices.
In addition to being able to roam across the Globe with no extra charges, our M2M data sims are multi-network which means,
they are able to work across different networks and switch to whichever has a stronger signal.
COUNTRY | NETWORK |
Afghanistan | Emirates Telecommunications Corporation (ETISALAT) |
Albania | Eagle Mobile |
Albania | Vodafone – Albania |
Anguilla | Cable and Wireless (Anguilla) Ltd |
Antigua and Barbuda | Cable & Wireless Antigua & Barbuda Ltd |
Argentina | Telefónica Móviles Argentina S.A. |
Armenia | UCOM LLC |
Armenia | Armenia Telephone Company (Armentel) Joint Venture |
Aruba | New Millennium Telecom Services NV |
Austria | Hutchison Drei Austria GmbH |
Austria | T-Mobile Austria GmbH |
Azerbaijan | Azercell Telecom LLC |
Azerbaijan | Azerfon LLC |
Bahamas | Be Aliv |
Bangladesh | Grameenphone Ltd |
Bangladesh | Banglalink Digital Communications Ltd. |
Barbados | Cable & Wireless (Barbados) Ltd |
Belarus | Unitary enterprise velcom |
Belarus | JLLC Mobile TeleSystems |
Belgium | Telenet Group BVBA/SPRL |
Belgium | ORANGE Belgium nv/SA |
Belgium | Proximus PLC |
Belize | Belize Telemedia Limited |
Benin | Etisalat Benin SA |
Bolivia (Plurinational State of) | TIGO – Telefonica Celular de Bolivia S.A. |
Bolivia (Plurinational State of) | VIVA – Nuevatel PCS de Bolivia |
Brazil | Vivo S.A. |
British Virgin Islands | Caribbean Cellular Telephone |
British Virgin Islands | Cable and Wireless (BVI) Ltd |
Brunei Darussalam | Progresif Cellular Sdn Bhd |
Bulgaria | Telenor Bulgaria EAD |
Bulgaria | Mobiltel EAD |
Burkina Faso | Airtel Burkina Faso S.A |
Burundi | Lacell SU |
Cambodia | Vietell network |
Canada | Videotron General Partnership |
Cayman Islands | Cable and Wireless (Cayman Islands) Ltd |
Chad | Airtel Tchad |
Chile | Telefónica Móvil de Chile S.A. |
China | China Mobile Limited |
China | China Unicom |
Colombia | Colombia Telecomunicaciones S.A. ESP |
Congo, Republic of | Airtel Congo SA |
Congo, The Democratic Republic of the | Airtel Congo RDC SA |
Congo, The Democratic Republic of the | Vodacom Congo (RDC) S.A. |
Costa Rica | MOVISTAR -Telefonica Costa Rica |
Croatia | Tele2 d.o.o za telekomunikacijske usluge |
Croatia | VIPnet d.o.o. |
Cyprus | Cyprus Telecommunications Authority |
Cyprus | MTN Cyprus Limited |
Cyprus | PrimeTel PLC |
Czech Republic | O2 Czech Republic a.s. |
Czech Republic | Vodafone Czech Republic a.s. |
Czech Republic | T-Mobile Czech Republic a.s. |
Denmark | HI3G Denmark ApS |
Denmark | Telia Nattjanster Norden AB |
Denmark | Telenor A/S |
Denmark | TDC Denmark A/S |
Dominica | Cable & Wireless Dominica Limited |
Ecuador | Otecel Sociedad Anónima |
Ecuador | Corporación Nacional de Telecomunicaciones CNT E.P. |
Egypt | Orange Egypt for Telecommunications |
El Salvador | Digicel, S.A. de C.V. |
El Salvador | Telefónica Móviles El Salvador, S.A de C.V. |
El Salvador | Telemovil El Salvador, S.A. |
Estonia | Telia Eesti AS |
Estonia | Tele2 Eesti Aktsiaselts |
Estonia | Elisa Eesti AS |
Faroe Islands | Føroya Tele (Faroese Telecom) |
Fiji | Digicel (Fiji) Ltd |
Finland | Ålands Telekommunikation Ab |
Finland | DNA Ltd |
Finland | TeliaSonera Finland Oyj |
Finland | Elisa Corporation |
France | Free Mobile |
France | Orange |
France | Société Française du Radiotéléphone S.A. |
France | Bouygues Télécom |
Gabon | Celtel Gabon S.A. |
Georgia | Mobitel LLC |
Georgia | Geocell Ltd |
Germany | Vodafone GmbH |
Germany | Telekom Deutschland GmbH |
Germany | Telefónica Germany GmbH & Co. OHG |
Ghana | Airtel Ghana Limited |
Ghana | Vodafone Ghana |
Gibraltar | Gibtelecom Limited |
Greece | Vodafone-Panafon Hellenic Telecommunications Company S.A. |
Greece | Cosmote Mobile Telecommunications S.A. |
Greenland | Tele Greenland A/S |
Grenada | Cable & Wireless Grenada Limited |
Guadeloupe | Digicel Antilles Française Guyane |
Guatemala | Telefónica Móviles Guatemala, S.A. |
Guinea | Areeba Guinée S.A. |
Guyana | U-Mobile (Cellular) Inc |
Haiti | Communication Cellulaire d’Haiti SA |
Honduras | Tigo – Telefónica Celular, S.A. (CELTEL) |
Hong Kong | Hong Kong Telecommunications (HKT) Limited |
Hong Kong | Hutchison Telecommunications Hong Kong Holdings Limited |
Hong Kong | SmarTone Mobile Communications Limited |
Hong Kong | China Mobile Hong Kong Company Limited |
Hungary | T-Mobile Hungary |
Hungary | Vodafone Hungary Mobile Telecommunications Company Limited |
Hungary | Telenor Magyarország Zártkörűen Működő Részvénytársaság |
Iceland | Síminn h.f. |
Iceland | Vodafone |
Iceland | Nova ehf. |
India | Aircel Limited |
India | Vodafone India Limited |
Indonesia | PT. XL Axiata Tbk |
Indonesia | PT Indosat Tbk |
Indonesia | PT Telekomunikasi Selular |
Iran, Islamic Republic of | MCI/TCI |
Ireland | Three Ireland (Hutchison) Limited |
Ireland | Meteor Mobile Communications Limited |
Ireland | Vodafone Ireland Limited |
Israel | Hot Mobile Ltd. |
Israel | Pelephone Communication Ltd. |
Italy | H3G S.p.A. |
Italy | Wind Telecomunicazioni S.p.A. |
Italy | Vodafone Italia S.p.A |
Italy | Telecom Italia SpA |
Jamaica | Cable & Wireless Jamaica Limited |
Jamaica | Digicel (Jamaica) Limited |
Japan | KDDI |
Japan | SoftBank Corp. |
Jordan | Zain / Jordan Mobile Telephone Services Company, Ltd. |
Kazakhstan | Mobile Telecom-Service LLP |
Kazakhstan | Kcell JSC |
Kazakhstan | KaR-Tel LLP |
Kenya | Airtel Networks Kenya Limited |
Kenya | Telkom Kenya Limited |
Kenya | Safaricom Limited |
Korea, Republic of | LG Uplus |
Korea, Republic of | KT Corporation |
Korea, Republic of | SK Telecom Co., Ltd. |
Kosovo | VALA – Monaco Telecom |
Kuwait | Kuwait Telecom Company (K.S.C.) |
Kyrgyzstan | Sky Mobile LLC |
Lao People’s Democratic Republic | VimpelCom Lao Company Ltd. |
Latvia | Latvijas Mobilais Telefons |
Latvia | Tele2 SIA |
Liechtenstein | Telecom Liechtenstein AG |
Lithuania | UAB Bitė Lietuva |
Lithuania | Omnitel |
Lithuania | UAB Tele2 |
Luxembourg | POST Luxembourg |
Luxembourg | Tango SA |
Macao | Hutchison Telephone (Macau) Company Limited |
Macao | Companhia de Telecomunicações de Macau, S.A.R.L. |
Macedonia, the former Yugoslav Republic of | one.Vip DOO Skopje |
Malawi | Airtel Malawi Limited |
Malaysia | Celcom Axiata Berhad |
Malaysia | Maxis Broadband Sdn. Bhd. |
Malaysia | Digi Telecommunications Sdn Bhd |
Malta | GO p.l.c. |
Malta | Vodafone Malta Limited |
Mexico | AT&T Comercializacion Movil, S. de R.L. de C.V. |
Mexico | AT&T Comunicaciones Digitales, S. de R.L. de C.V. |
Mexico | Pegaso PCS, S.A. de C.V. (MOVISTAR) |
Moldova, Republic of | Moldcell S.A |
Moldova, Republic of | Orange Moldova S.A. |
Mongolia | MobiCom Corporation |
Mongolia | Unitel LLC |
Montenegro | Telenor d.o.o. Podgorica |
Montenegro | MTEL d.o.o. Podgorica |
Montserrat | Cable and Wireless (West Indies) Ltd. |
Myanmar | Telenor Myanmar Limited |
Nepal | NTC – Nepal Telecom |
Netherlands | Vodafone Libertel B.V. |
Netherlands | T-Mobile Netherlands B.V. |
Netherlands | KPN B.V. |
Netherlands Antilles | Curaçao Telecom N.V. |
New Zealand | Spark New Zealand |
New Zealand | Two Degrees Mobile Limited |
New Zealand | Vodafone New Zealand Ltd |
Nicaragua | Telefónia Celular de Nicaragua S.A. |
Nigeria | Airtel Networks Limited |
Nigeria | MTN Nigeria Communications Limited |
Nigeria | Emerging Markets Telecommunication Services Ltd |
Norway | Telia Norge AS |
Norway | Telenor Norge AS |
Norway | TDC Norway A/S |
Oman | Oman Telecommunications Company S.A.O.G. |
Pakistan | Pakistan Mobile Company Limited (PMCL) |
Pakistan | Telenor Pakistan Limited |
Palestine, State Of | Jawwal – Palestine Telecommunications Company |
Panama | Telefónica Móviles Panamá, S.A. |
Panama | Digicel (Panama) S.A. |
Papua New Guinea | Digicel (PNG) Limited |
Paraguay | Núcleo S.A. |
Paraguay | Tigo – Telefonica Celular Del Paraguay S.A. (Telecel S.A.) |
Peru | Telefónica del Perú S.A.A. |
Philippines | Globe Telecom, Inc. |
Philippines | Smart Communications, Inc. |
Poland | Polkomtel Sp. z o.o. |
Poland | P4 Sp. z o.o. |
Poland | T-Mobile Polska S.A. |
Poland | Orange Polska S.A. |
Portugal | NOS – Comunicações, S.A. |
Portugal | Vodafone Portugal – Comunicações Pessoais, S.A. |
Qatar | Ooredoo QSC |
Qatar | Vodafone Qatar Q.S.C. |
Romania | Telekom Romania Mobile Communications S.A. |
Romania | S.C. Orange România S.A. |
Romania | S.C. Vodafone Romania S.A. |
Russian Federation | LLC T2 Mobile |
Russian Federation | PJSC Mobile TeleSystems (MTS) |
Russian Federation | VimpelCom PJSC |
Rwanda | MTN RwandaCell S.A.R.L. |
Saint Kitts and Nevis | Cable & Wireless St Kitts & Nevis Limited |
Saint Lucia | Cable & Wireless (St. Lucia) Limited |
Saint Vincent and the Grenadines | Cable & Wireless (St. Vincent & the Grenadines) Ltd |
Samoa | Digicel (Samoa) Limited |
Saudi Arabia | Saudi Telecom Company (STC) |
Saudi Arabia | MTC Saudi Arabia (Zain) |
Serbia | Telenor d.o.o. |
Slovakia | O2 Slovakia, s.r.o. |
Slovakia | Orange Slovensko, a.s. |
Slovakia | Slovak Telekom, a.s. |
Slovenia | SI.Mobil d.d. |
Slovenia | Telekom Slovenije d.d. |
Slovenia | Tusmobil |
South Africa | Cell C (Pty) Ltd |
South Africa | Vodacom Group (Pty) Ltd. |
South Africa | Mobile Telephone Networks (Pty) Ltd. |
Spain | Vodafone España, S.A.U. |
Spain | Xfera Móviles, S.A. |
Spain | Orange Espagne, S.A., sociedad unipersonal |
Spain | Telefónica Móviles España S.A. |
Sri Lanka | Mobitel (Pvt) Limited |
Sri Lanka | Dialog Axiata Plc |
Sri Lanka | Hutchison Telecommunications Lanka (Pvt) Ltd |
Suriname | TLESUR |
Suriname | Digicel Suriname N.V. |
Sweden | Telenor Sverige AB |
Sweden | Hi3G Access AB |
Sweden | Telia Company AB |
Sweden | Tele2 AB |
Switzerland | Swisscom (Switzerland) Ltd |
Switzerland | Sunrise Communications AG |
Switzerland | Salt Mobile SA |
Taiwan | Chunghwa Telecom |
Taiwan | Taiwan Star Telecom Corporation Limited |
Taiwan | Taiwan Mobile Co.Ltd |
Taiwan | Far EasTone Telecommunications Co Ltd |
Tajikistan | Tacom LLC |
Tanzania, United Republic of | Airtel Tanzania Limited |
Tanzania, United Republic of | Benson Informatics Limited |
Thailand | dtac TriNet Co., Ltd. |
Thailand | True Move H Universal Communication Co., Ltd. |
Thailand | dtac TriNet Co., Ltd |
Thailand | Advanced Wireless Network Company Limited |
Tonga | Digicel Tonga Limited |
Trinidad and Tobago | Digicel Trinidad and Tobago Ltd |
Tunisia | Tunisiana – Ooredoo Tunisie SA |
Turkey | Avea Iletisim Hizmetleri A.S. |
Turkey | Vodafone Telekomunikasyon A.S |
Turkey | Turkcell Iletisim Hizmetleri A.S. |
Turks and Caicos Islands | Cable and Wireless (TCI) Ltd |
Uganda | Airtel Uganda Limited |
Uganda | Uganda Telecom Ltd |
Ukraine | Kyivstar, Private Joint Stock Company |
Ukraine | Lifecell LLC |
United Arab Emirates | DU – Emirates Integrated Telecommunications Company PJSC |
United Kindgom – Jersey & Guernsey | JT (Jersey) Limited |
United Kingdom | Telefónica UK Limited |
United Kingdom | Hutchison 3G UK Limited |
United Kingdom | Vodafone Ltd |
United Kingdom | EE Limited |
United Kingdom – Isle of Man | Manx Telecom |
United States | Union Telephone Company |
United States | Indigo Wireless, Inc |
United States | Cincinnati Bell Wireless |
United States | NE Colorado Cellular, Inc |
United States | Sprint |
United States | Verizon Wireless |
United States | AT&T Mobility |
United States | T-Mobile USA, Inc |
United States | Limitless Mobile, LLC |
Uruguay | Telefónica Móviles Del Uruguay S.A. |
Uzbekistan | Unitel LLC |
Venezuela, Bolivarian Republic of | Telefónica Venezolana, C.A. |
Vietnam | Vietnamobile Telecomm |
Zambia | Airtel Networks Zambia Plc |
Zambia | Zambia Telecommunications Company Ltd (ZAMTEL) |
Additional information
Weight | 250 g |
---|---|
Dimensions | 10 × 3 × 10 cm |
Driver Identification | |
Remote Immobilisation | |
Service Top-up | |
SKU | |
Location |
Reviews
There are no reviews yet.
